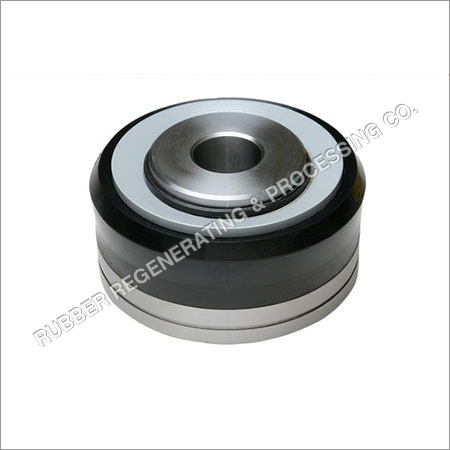

Pinnacle Assembled Piston

Pinnacle Assembled Piston
Pinnacle Assembled Piston
Product Code : PAP 04
Brand Name : RRPC
Product Description
RUBBER REGENERATING & PROCESSING CO. is well famous company in the market, involved in providing highly durable Pinnacle Assembled Piston. It mainly designed to use in the most demanding applications. The replaceable seal element is fabricated with specially formulated elastomer compound which provide resistance to most chemical fluid mainly found in the drilling industry today. It can be used in the condition where elevated temperatures can be uncertain to other types of pistons in the market. Moreover, the fabric anti-extrusion device on the Pinnacle Assembled Piston is designed from the proprietary materials that are used in researched process to reduce the extrusion of the rubber as well as in maximum pressure in the pump.

Special features:Pinnacle assembled piston

  • Most robust piston for most demanding application at economical price.
  • “Bull Nose”, design promises ease of assembly when loading into the liner due to the smooth engagement of the piston into the liner bore
  • extra strong sealing area increases run times even at pressures up to 6500 psi
  • Fabric anti-extrusion device reduces extrusion of the rubber even at maximum pressure rating
  • Rubber Assembly can be re installed till circular marks on the metal core are prominent and deep.
  • Temperature resistance up to 225˚F (107˚C)
  • Available in size 4”K, 4.5”K, 5”B. 5.5”B. 6”B. 6.25”L, 6.5”L, 6.75”L, 7”L, 7.25”L, 7.5”L
